Midland Industries MIDM 18208

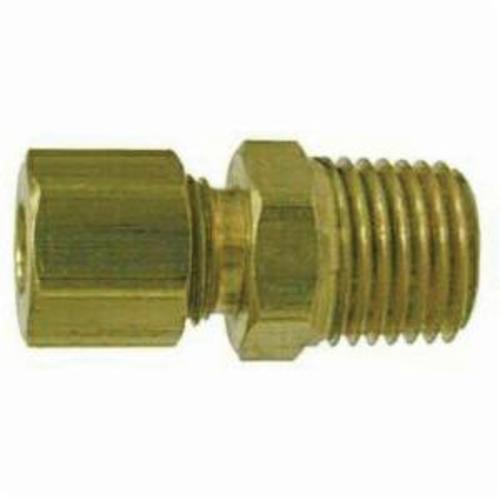

Midland Industries 18208 Tank Adapter, 1/4 x 1/8 in, Compression x MNPTF, Brass
Invoice description:
Adapter Tank 1/4x1/8in 0 .43in 300psi Midland Industries 18208 Tank Adapter, 1/4 X 1/8 In, Compression X Mnptf, Brass
Factory Order
Midland Industries Tank Adapter, Adapter, 1/4 x 1/8 in Nominal, Compression x MNPTF, 0.43 in Hex, 300 psi, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.43 in
MaterialBrass
Nominal Size1/4 x 1/8 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
