Midland Industries MIDM 18213

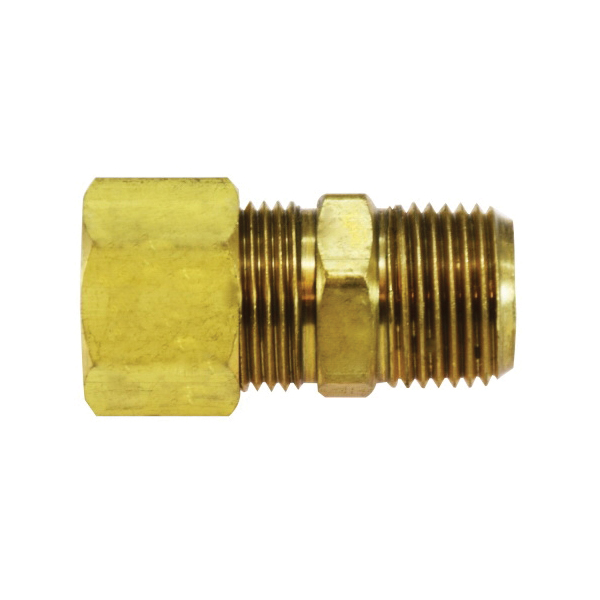

Midland Industries 18213 Tank Adapter, 1/2 x 3/8 in, Compression x MNPTF, Brass
Invoice description:
Adapter Tank 1/2x3/8in 0 .68in 200psi Midland Industries 18213 Tank Adapter, 1/2 X 3/8 In, Compression X Mnptf, Brass
Factory Order
Midland Industries Tank Adapter, Adapter, 1/2 x 3/8 in Nominal, Compression x MNPTF, 0.68 in Hex, 200 psi, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.68 in
MaterialBrass
Nominal Size1/2 x 3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
