Midland Industries MIDM 18253B

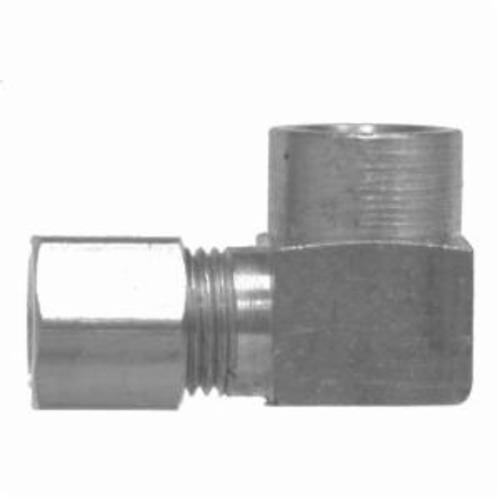

Midland Industries 18253B 90 deg Tube-to-Pipe Elbow, 1/4 x 1/8 in Nominal, Compression x FNPTF End Style, CA360 Brass
Invoice description:
Elbow Tube-to-pipe 90 De G Elb Ca360 Brs Midland Industries 18253b 90 Deg Tube-to-pipe Elbow, 1/4 X 1/8 In Nominal, Compression X Fnptf End Style, Ca360 Brass
Factory Order
Midland Industries Tube-to-Pipe Elbow, 90 deg Elbow Fitting/Connector, 1/4 x 1/8 in Nominal, Compression x FNPTF End Style, 300 psi Pressure, -65 to 250 deg F, CA360 Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Barstock
- 0.56 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x FNPTF
Fitting/Connector Type90 deg Elbow
MaterialCA360 Brass
Nominal Size1/4 x 1/8 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060203
Country of OriginUS
