Midland Industries MIDM 18275

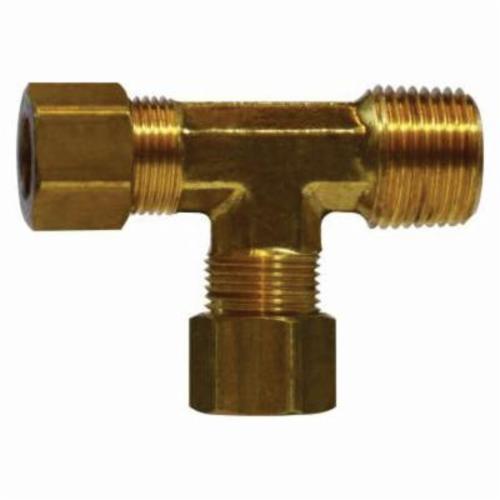

Midland Industries 18275 Run Tee, 1/4 in, Compression x MNPTF x Compression, CA377 Brass
Invoice description:
Tee Run 1/4in 300psi -65 To250degf Midland Industries 18275 Run Tee, 1/4 In, Compression X Mnptf X Compression, Ca377 Brass
Factory Order
Midland Industries Run Tee, Tee, 1/4 in Nominal, Compression x MNPTF x Compression, 300 psi, -65 to 250 deg F, CA377 Brass, 1.57 in L, Forged
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.44 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions1.57 in L
End StyleCompression x MNPTF x Compression
Fitting/Connector TypeTee
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
