Midland Industries MIDM 18280

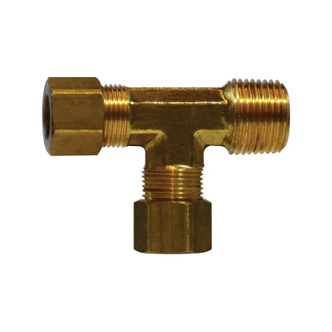

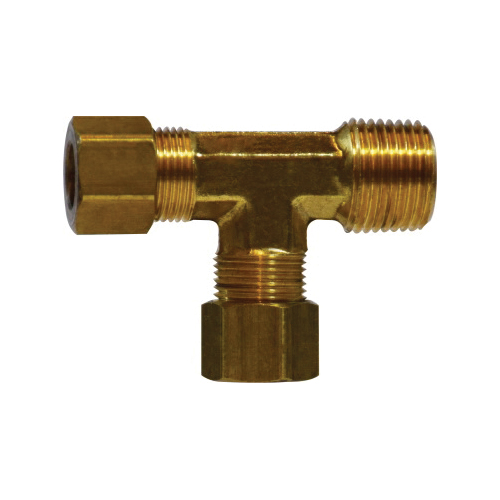

Midland Industries 18280 Run Tee, 3/8 in, Compression x MNPTF x Compression, CA377 Brass
Invoice description:
Tee Run 3/8in 200psi -65 To250degf Midland Industries 18280 Run Tee, 3/8 In, Compression X Mnptf X Compression, Ca377 Brass
Factory Order
Midland Industries Run Tee, Tee, 3/8 in Nominal, Compression x MNPTF x Compression, 200 psi, -65 to 250 deg F, CA377 Brass, 1.88 in L, Forged
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.47 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions1.88 in L
End StyleCompression x MNPTF x Compression
Fitting/Connector TypeTee
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
