MMM MIDM 18291B

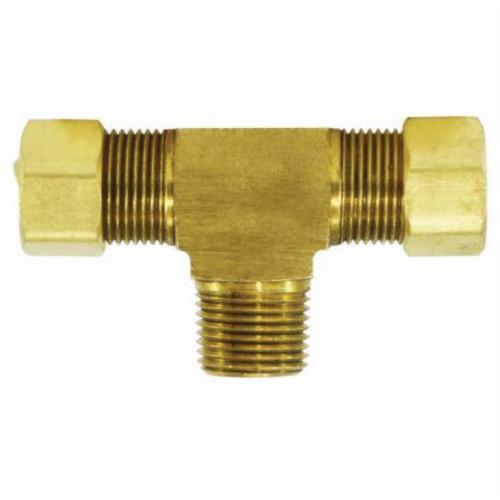

MMM 18291B Branch Tee, 1/4 x 1/4 x 1/8 in, Compression x Compression x MNPTF, CA360 Brass
Invoice description:
Tee Br 1/4x1/4x1/8in 300 Psi Mmm 18291b Branch Tee, 1/4 X 1/4 X 1/8 In, Compression X Compression X Mnptf, Ca360 Brass
Factory Order
MMM Branch Tee, Tee, 1/4 x 1/4 x 1/8 in Nominal, Compression x Compression x MNPTF, 300 psi, -65 to 250 deg F, CA360 Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Barstock
- 0.45 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x Compression x MNPTF
Fitting/Connector TypeTee
MaterialCA360 Brass
Nominal Size1/4 x 1/4 x 1/8 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060203
Country of OriginUS
