MMM MIDM 18299B

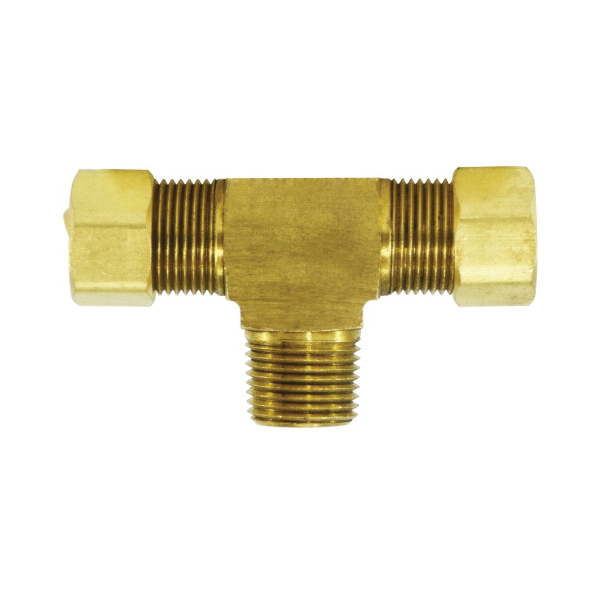

MMM 18299B Branch Tee, 1/2 x 1/2 x 3/8 in, Compression x Compression x MNPTF, CA360 Brass

Invoice description: Tee Br 1/2x1/2x3/8in 200 Psi Mmm 18299b Branch Tee, 1/2 X 1/2 X 3/8 In, Compression X Compression X Mnptf, Ca360 Brass

UNSPSC: 40141734
Manufacturer PN: 18299B
$22.56 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Branch Tee, Tee, 1/2 x 1/2 x 3/8 in Nominal, Compression x Compression x MNPTF, 200 psi, -65 to 250 deg F, CA360 Brass

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing
  • Barstock
  • 0.7 in body size

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x Compression x MNPTF
Fitting/Connector TypeTee
MaterialCA360 Brass
Nominal Size1/2 x 1/2 x 3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060203
Country of OriginUS

Documents
