Midland Industries MIDM 18300

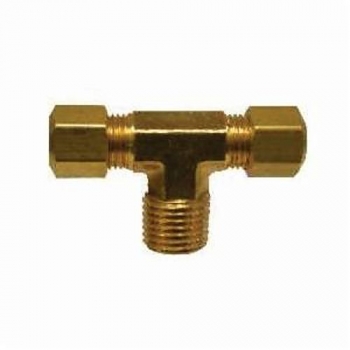

Midland Industries 18300 Branch Tee, 1/2 in, Compression x Compression x MNPTF, CA377 Brass

Invoice description: Tee Br 1/2in 200psi -65t O250degf Fgd Midland Industries 18300 Branch Tee, 1/2 In, Compression X Compression X Mnptf, Ca377 Brass

UNSPSC: 40183109
Manufacturer PN: 18300
$14.53 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Branch Tee, Tee, 1/2 in Nominal, Compression x Compression x MNPTF, 200 psi, -65 to 250 deg F, CA377 Brass, Forged

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing
  • 0.69 in body size

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x Compression x MNPTF
Fitting/Connector TypeTee
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/2 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060203
Country of OriginUS
