Midland Industries MIDM 18307

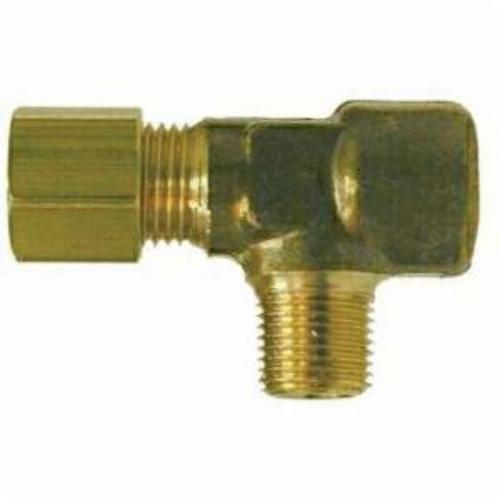

Midland Industries 18307 Tube-to-Pipe Tee, 1/4 x 1/8 x 1/8 in, Compression x FNPTF x MNPTF, CA377 Brass, Import
Invoice description:
Tee Tube-to-pipe 1/4x1/8 X1/8in Fgd Midland Industries 18307 Tube-to-pipe Tee, 1/4 X 1/8 X 1/8 In, Compression X Fnptf X Mnptf, Ca377 Brass, Import
Factory Order
Midland Industries Tube-to-Pipe Tee, Tee, 1/4 x 1/8 x 1/8 in Nominal, Compression x FNPTF x MNPTF, 300 psi, -65 to 250 deg F, CA377 Brass, Forged, Import
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Domestic/ImportImport
End StyleCompression x FNPTF x MNPTF
Fitting/Connector TypeTee
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size1/4 x 1/8 x 1/8 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginCN
