Midland Industries MIDM 18323

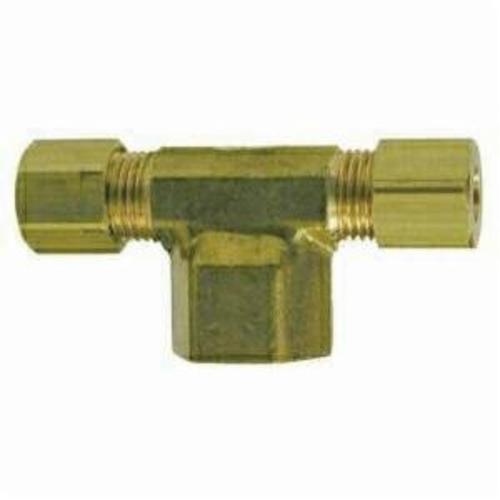

Midland Industries 18323 Branch Tee, 3/8 in, Compression x Compression x FNPTF, CA377 Brass

Invoice description: Tee Br 3/8in 200psi -65t O250degf Fgd Midland Industries 18323 Branch Tee, 3/8 In, Compression X Compression X Fnptf, Ca377 Brass

UNSPSC: 40183109
Manufacturer PN: 18323
$25.17 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Branch Tee, Tee, 3/8 in Nominal, Compression x Compression x FNPTF, 200 psi, -65 to 250 deg F, CA377 Brass, Forged

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing
  • 1.05 in body size

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x Compression x FNPTF
Fitting/Connector TypeTee
MaterialCA377 Brass
Method of ManufactureForged
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginUS
