Midland Industries MIDM 18332

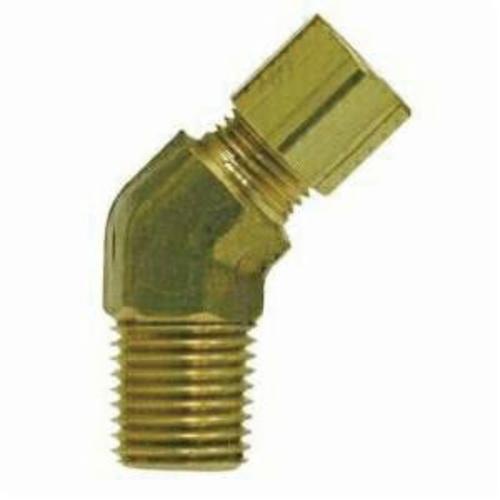

Midland Industries 18332 Tube-to-Pipe Elbow, 5/16 x 1/4 in, Compression x MNPTF, Brass
Invoice description:
Elbow Tube-to-pipe 5/16x 1/4in 300psi Midland Industries 18332 Tube-to-pipe Elbow, 5/16 X 1/4 In, Compression X Mnptf, Brass
Factory Order
Midland Industries Tube-to-Pipe Elbow, 45 deg Elbow, 5/16 x 1/4 in Nominal, Compression x MNPTF, 300 psi, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.53 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x MNPTF
Fitting/Connector Type45 deg Elbow
MaterialBrass
Nominal Size5/16 x 1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060302
Country of OriginUS
