Midland Industries MIDM 18334

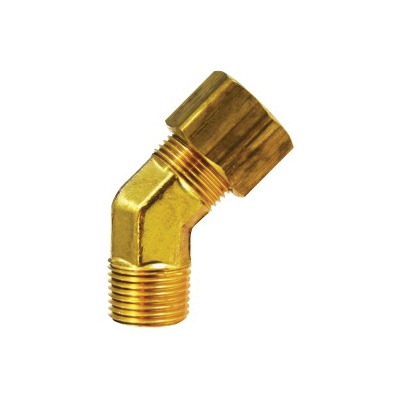

Midland Industries 18334 Tube-to-Pipe Elbow, 1/2 x 3/8 in, Compression x MNPTF, Brass
Invoice description:
Elbow Tube-to-pipe 1/2x3 /8in 200psi Midland Industries 18334 Tube-to-pipe Elbow, 1/2 X 3/8 In, Compression X Mnptf, Brass
Factory Order
Midland Industries Tube-to-Pipe Elbow, 45 deg Elbow, 1/2 x 3/8 in Nominal, Compression x MNPTF, 200 psi, -65 to 250 deg F, Brass
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- 0.59 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression x MNPTF
Fitting/Connector Type45 deg Elbow
MaterialBrass
Nominal Size1/2 x 3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060302
Country of OriginUS
