Midland Industries MIDM 20053N

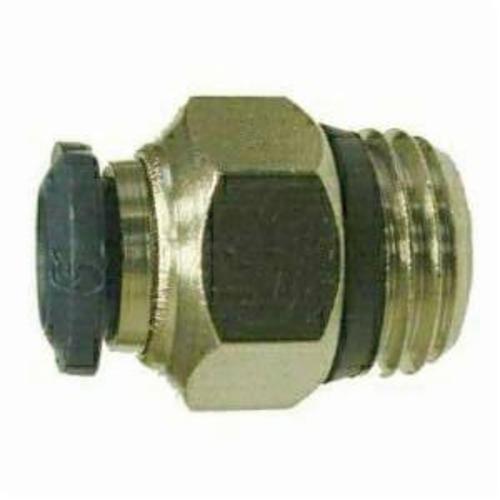

Midland Industries 20053N Tube-to-Pipe Adapter, 1/4 in Nominal, Push-In x Male Global Thread End Style, Brass
Invoice description:
Adapter Tube-to-pipe Adp Tr 1/4in Brs Np Midland Industries 20053n Tube-to-pipe Adapter, 1/4 In Nominal, Push-in X Male Global Thread End Style, Brass
Factory Order
Midland Industries Tube-to-Pipe Adapter, Fitting/Connector Type: Adapter, 1/4 in Nominal, Push-In x Male Global Thread, 0.51 in Hex, 0 to 250 psi, 0 to 160 deg F, Brass, Nickel Plated, 0.97 in L
Features
- Compressed air, water is allowed as fluid
- Nylon, polyethylene, polyurethane tubing
- +/- 0.02 tolerance on all dimensions
- 10-32 UNF
- Plastic thrust ring, brass, nickel plated sleeve, stainless steel gripper collet, PA66 safety ring, Buna-n 70 lip seal ( 1/8 O-ring seal) and thread seal
Specifications
Dimensions0.97 in L
End StylePush-In x Male Global Thread
FinishNickel Plated
Fitting/Connector TypeAdapter
Hex Size0.51 in
MaterialBrass
Nominal Size1/4 in
Pressure Rating0 to 250 psi
Temperature Rating0 to 160 deg F
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Country of OriginUS
Catalog
