Midland Industries MIDM 20072P

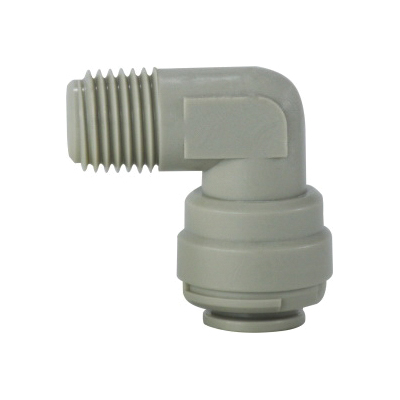

Midland Industries 20072P Fixed Elbow, 3/8 x 1/4 in Nominal, Push-In x MIP, Plastic
Invoice description:
Elbow Fxd 3/8x1/4in Push -inxmip Midland Industries 20072p Fixed Elbow, 3/8 X 1/4 In Nominal, Push-in X Mip, Plastic
Factory Order
Midland Industries Fixed Elbow, Fitting/Connector Type: 90 deg Elbow, 3/8 x 1/4 in Nominal, Push-In x MIP, 0 to 150 psi, 33 to 140 deg F, Plastic
Features
- For plastic tube polyethylene, nylon, polyurethane (for soft tubing or thin wall tube, tube supports are recommended)
- For braided tube, the use of tube to hose stems and elbows is required, to retain braided tube on barbs, the use of clamps is also recommended
- Food grade polypropylene bodies, food grade nitrile rubber or EPDM O-rings, food grade acetal copolymer, stainless steel teeth collet
- Suitable for vacuum
Specifications
End StylePush-In x MIP
Fitting/Connector Type90 deg Elbow
MaterialPlastic
Nominal Size3/8 x 1/4 in
Pressure Rating0 to 150 psi
Temperature Rating33 to 140 deg F
Additional Information
Standards/ApprovalNSF|FDA Approved
Country of OriginUS
