Midland Industries MIDM 20095

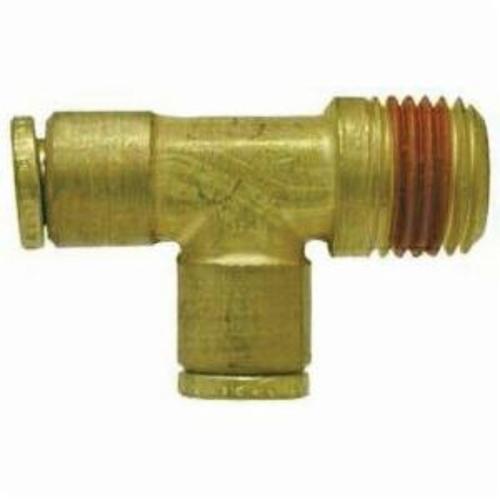

Midland Industries 20095 Fixed Tube to Pipe Run Tee, 1/8 in Nominal, Push-In x Push-In x MNPTF End Style, Brass
Invoice description:
Tee Run Tube-to-pipe 1/8 In Brs Fxd Midland Industries 20095 Fixed Tube To Pipe Run Tee, 1/8 In Nominal, Push-in X Push-in X Mnptf End Style, Brass
Factory Order
Midland Industries Tube to Pipe Run Tee, Fixed, Fitting/Connector Type: Tee, 1/8 in Nominal, Push-In x Push-In x MNPTF, -10 to 200 deg F, Brass
Features
- Quick connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reuseable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Versatile, BunaN O-rings standard
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- Brass construction, elbows and tees are forged brass
- Choice of convenient swivel of economical stationary elbows and tees
- Straight connectors have interior hex for allen key tightening where space is limited, no need to use a wrench
Specifications
ApplicationFor use up to the maximum working pressure of the plastic tubing used
End StylePush-In x Push-In x MNPTF
Fitting/Connector TypeTee
MaterialBrass
Nominal Size1/8 in
Temperature Rating-10 to 200 deg F
TypeFixed
Additional Information
Country of OriginUS
