Midland Industries MIDM 20111N

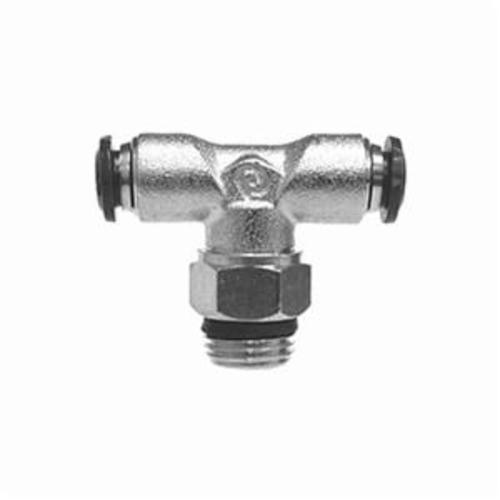

Midland Industries 20111N Swivel Branch Tee, 1/2 in Nominal, Push-In x Push-In x Male Global Threaded End Style, Brass
Invoice description:
Tee Br Swvl 1/2in 0.82in 0to250psi Brs Midland Industries 20111n Swivel Branch Tee, 1/2 In Nominal, Push-in X Push-in X Male Global Threaded End Style, Brass
Factory Order
Midland Industries Swivel Branch Tee, Fitting/Connector Type: Tee, 1/2 in Nominal, Push-In x Push-In x Male Global Threaded, 0.82 in Hex, 0 to 250 psi, 0 to 160 deg F, Brass, Nickel Plated
Features
- Compressed air, water is allowed as fluid
- Nylon, polyethylene, polyurethane tubing
- +/- 0.02 tolerance on all dimensions
- Plastic thrust ring, brass - nickel plated sleeve, stainless steel gripper collet, PA66 safety ring, NBR 70 lip seal ( 1/8 O-ring seal) and thread sea
Specifications
End StylePush-In x Push-In x Male Global Threaded
FinishNickel Plated
Fitting/Connector TypeTee
Hex Size0.82 in
MaterialBrass
Nominal Size1/2 in
Pressure Rating0 to 250 psi
Temperature Rating0 to 160 deg F
Additional Information
Country of OriginUS
