Midland Industries MIDM 20128N

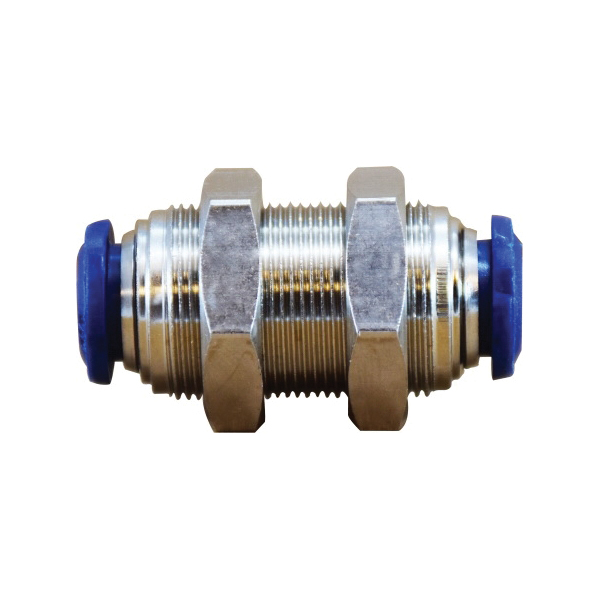

Midland Industries 20128N Bulkhead Union, 3/8 in Nominal, Push-In End Style, Brass

Invoice description: Union Bhd Coupling 3/8in Push-in Brs Np Midland Industries 20128n Bulkhead Union, 3/8 In Nominal, Push-in End Style, Brass

UNSPSC: 40183102
Manufacturer PN: 20128N
$20.82 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Bulkhead Union, Coupling Fitting/Connector, 3/8 in Nominal, Push-In End Style, 0.94 in Hex, 0 to 250 psi Pressure, 0 to 160 deg F, Brass, Nickel Plated, 1.69 in L Dimensions

  • Features

  • +/- 0.02 tolerance on all dimensions
  • Allows compressed air, water as media
  • Nylon, polyethylene, polyurethane tubing, for best results use 95 Durometer

Specifications

Dimensions1.69 in L
End StylePush-In
FinishNickel Plated
Fitting/Connector TypeCoupling
Hex Size0.94 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating0 to 250 psi
Temperature Rating0 to 160 deg F

Additional Information

Country of OriginUS
