Midland Industries MIDM 20129

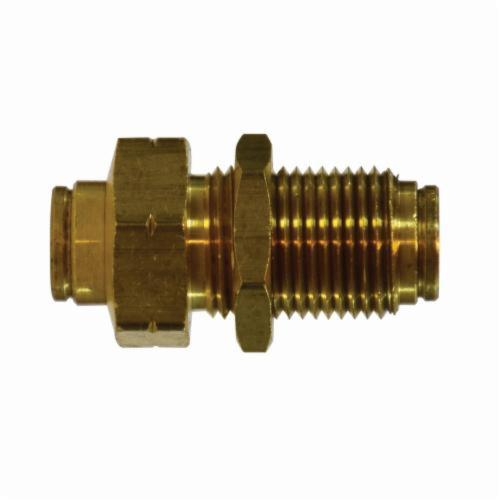

Midland Industries Bulkhead Union, Coupling Fitting/Connector, 1/2 in Nominal, Push-In x MNPT End Style, 1.12 in Hex, -10 to 200 deg F, Brass, 1.85 in L Dimensions

• Features

• Quick connect simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
• Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
• Reuseable, connect and disconnect numerous times
• Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
• Versatile, BunaN O-rings standard
• Secure tube retention, pulling on tubing only serves to tighten the connection
• Self contained assembly, no loose parts, brass body and insert
• PRE-APPLIED TEFLON based pipe sealant on all male pipe threads, saving customer additional labor
• /- 0.02 tolerance on all dimension
• Fitting is suitable for use up to the maximum working pressure of the plastic tubing used

Specifications

Additional Information

Documents

• Catalog
