Midland Industries MIDM 20230

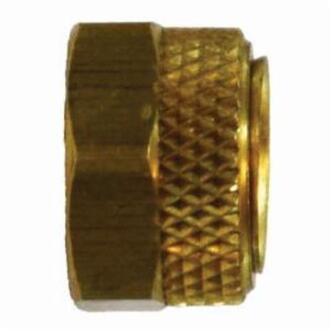

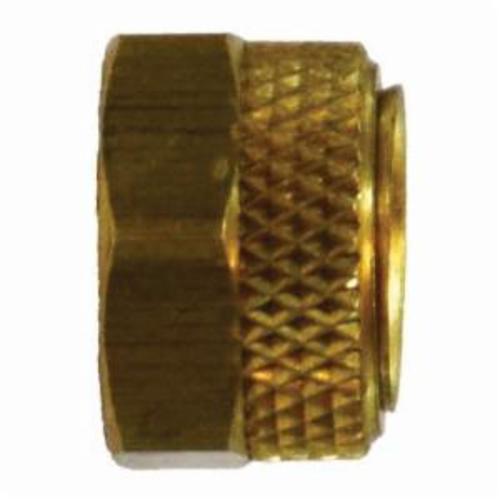

Midland Industries 20230 Universal Tube Nut and Sleeve, 5/16 in Nominal, Flareless End Style, CA360 Brass
Invoice description:
Sleeve And Nut Tube Nut Univ 5/16in Midland Industries 20230 Universal Tube Nut And Sleeve, 5/16 In Nominal, Flareless End Style, Ca360 Brass
Factory Order
Midland Industries Tube Nut and Sleeve, Universal, Nut Fitting/Connector, 5/16 in Nominal, Flareless End Style, 1/2 in Hex, 0.34 in Length, 0 to 300 psi Pressure, -65 to 250 deg F, CA360 Brass
Features
- Excellent vibration resistance
- /- 0.02 tolerance on all dimensions
- Easy installation, captive sleeve, pre-assembled for installation and can be reassembled
- Nuts rotate around the sleeve during tightening, preventing twisting of tubing
- Flaring of tubing not required
Specifications
ApplicationPneumatic Instrumentation Circuits, Lubricant, Cooling Lines, Aluminum and Copper Tubing
End StyleFlareless
Fitting/Connector TypeNut
Hex Size1/2 in
Length0.34 in
MaterialCA360 Brass
Nominal Size5/16 in
Pressure Rating0 to 300 psi
Temperature Rating-65 to 250 deg F
TypeUniversal
Additional Information
Country of OriginUS
