Midland Industries MIDM 20514P

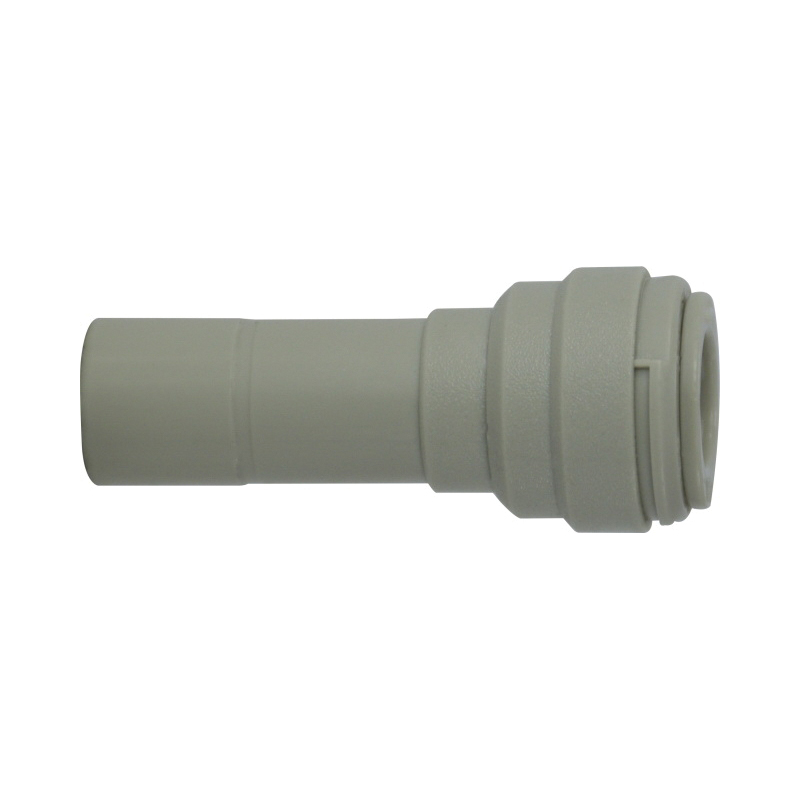

Midland Industries 20514P Tube Reducer, 1/2 x 3/8 in Nominal, Stem x Push-In, Plastic
Invoice description:
Reducer Tube 1/2x3/8in S Temxpush-in Midland Industries 20514p Tube Reducer, 1/2 X 3/8 In Nominal, Stem X Push-in, Plastic
Factory Order
Midland Industries Tube Reducer, Fitting/Connector Type: Coupling, 1/2 x 3/8 in Nominal, Stem x Push-In, 0 to 150 psi, 33 to 140 deg F, Plastic
Features
- For plastic tube polyethylene, nylon, polyurethane (for soft tubing or thin wall tube, tube supports are recommended)
- For braided tube, the use of tube to hose stems and elbows is required, to retain braided tube on barbs, the use of clamps is also recommended
- Food grade polypropylene bodies, food grade nitrile rubber or EPDM O-rings, food grade acetal copolymer, stainless steel teeth collet
- Suitable for vacuum
Specifications
End StyleStem x Push-In
Fitting/Connector TypeReducer
MaterialPlastic
Nominal Size1/2 x 3/8 in
Pressure Rating0 to 150 psi
Temperature Rating33 to 140 deg F
Additional Information
Standards/ApprovalNSF|FDA Approved
Country of OriginUS
