Midland Industries MIDM 20552

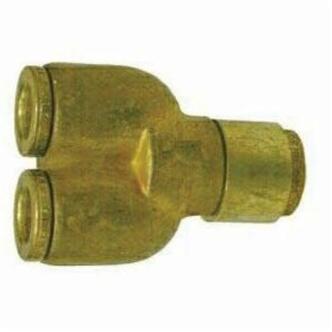

Midland Industries 20552 Union Y-Connector, 1/4 x 1/8 in Nominal, Push-In End Style, Brass
Invoice description:
Y-connector Un Adptr 1/4 X 1/8in Push-in Midland Industries 20552 Union Y-connector, 1/4 X 1/8 In Nominal, Push-in End Style, Brass
Factory Order
Midland Industries Union Y-Connector, Adapter Fitting/Connector, 1/4 x 1/8 in Nominal, Push-In End Style, -10 to 200 deg F, Brass, 1.61 in L Dimensions
Features
- Quick connect simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reuseable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Versatile, BunaN O-rings standard
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- PRE-APPLIED TEFLON based pipe sealant on all male pipe threads, saving customer additional labor
- /- 0.02 tolerance on all dimension
- Fitting is suitable for use up to the maximum working pressure of the plastic tubing used
Specifications
Dimensions1.61 in L
End StylePush-In
Fitting/Connector TypeAdapter
MaterialBrass
Nominal Size1/4 x 1/8 in
Temperature Rating-10 to 200 deg F
Additional Information
Country of OriginUS
