Midland Industries MIDM 20553

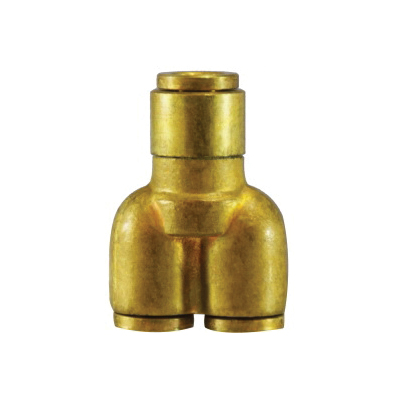

Midland Industries 20553 Union Y-Connector, 1/4 in Nominal, Push-In End Style, Brass

Invoice description: Y-connector Un Adptr 1/4 In Push-in Brs Midland Industries 20553 Union Y-connector, 1/4 In Nominal, Push-in End Style, Brass

UNSPSC: 40183100

Manufacturer PN: 20553

^$34.11 EA

Factory Order
Estimated to ship in 7 days

Midland Industries Union Y-Connector, Adapter Fitting/Connector, 1/4 in Nominal, Push-In End Style, -10 to 200 deg F, Brass, 1.81 in L Dimensions

Features
Quick connect simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
Reuseable, connect and disconnect numerous times
Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
Versatile, BunaN O-rings standard
Secure tube retention, pulling on tubing only serves to tighten the connection
Self contained assembly, no loose parts, brass body and insert
PRE-APPLIED TEFLON based pipe sealant on all male pipe threads, saving customer additional labor
/- 0.02 tolerance on all dimension
Fitting is suitable for use up to the maximum working pressure of the plastic tubing used
