Midland Industries MIDM 20803

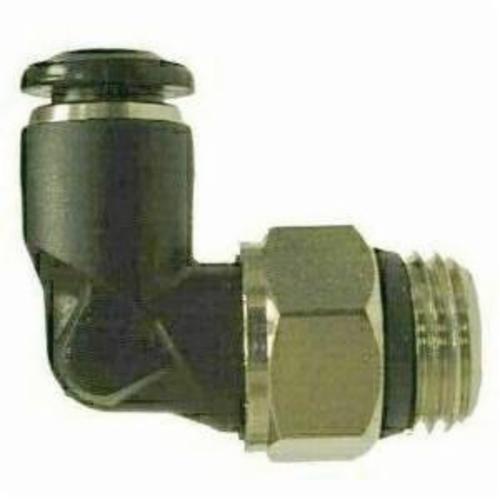

Midland Industries 20803 90 deg Swivel Elbow, 6 mm x 1/4 in Nominal, Tube x Male BSPT End Style, Brass, Import
Invoice description:
Elbow Swvl 90 Deg Elb 6 Mm X 1/4 In Brs Midland Industries 20803 90 Deg Swivel Elbow, 6 Mm X 1/4 In Nominal, Tube X Male Bspt End Style, Brass, Import
Factory Order
Midland Industries Swivel Elbow, 90 deg Elbow Fitting/Connector, 6 mm x 1/4 in Nominal, Tube x Male BSPT End Style, 0 to 220 psi Pressure, -5 to 175 deg F, Brass, Import
Features
- The latest generation of composite material is used in the body construction in addition to nickel plated brass on threaded components and stainless steel on the tube gripper
- Allows compressed air, non-toxic fluids (water) as media
- +/- 0.02 tolerance on all dimensions
- 1/4 in BSPT thread
Specifications
Domestic/ImportImport
End StyleTube x Male BSPT
Fitting/Connector Type90 deg Elbow
MaterialBrass
Nominal Size6 mm x 1/4 in
Pressure Rating0 to 220 psi
Temperature Rating-5 to 175 deg F
Additional Information
Country of OriginCN
