Midland Industries MIDM 20993P

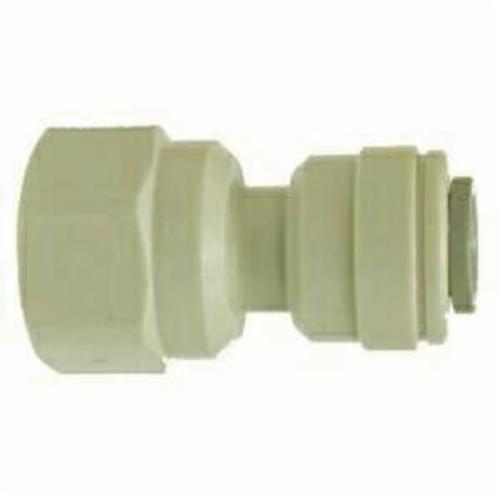

Midland Industries 20993P Connector, 1/4 x 1/8 in Nominal, Push-In x FNPTF, Plastic
Invoice description:
Connector 1/4x1/8in Push -inxfnptf Midland Industries 20993p Connector, 1/4 X 1/8 In Nominal, Push-in X Fnptf, Plastic
Factory Order
Midland Industries Connector, Fitting/Connector Type: Connector, 1/4 x 1/8 in Nominal, Push-In x FNPTF, 0 to 150 psi, 33 to 140 deg F, Plastic
Features
- For plastic tube polyethylene, nylon, polyurethane (for soft tubing or thin wall tube, tube supports are recommended)
- For braided tube, the use of tube to hose stems and elbows is required, to retain braided tube on barbs, the use of clamps is also recommended
- Food grade polypropylene bodies, food grade nitrile rubber or EPDM O-rings, food grade acetal copolymer, stainless steel teeth collet
- Suitable for vacuum
Specifications
End StylePush-In x FNPTF
Fitting/Connector TypeConnector
MaterialPlastic
Nominal Size1/4 x 1/8 in
Pressure Rating0 to 150 psi
Temperature Rating33 to 140 deg F
Additional Information
Standards/ApprovalNSF|FDA Approved
Country of OriginUS
