Midland Industries MIDM 21159

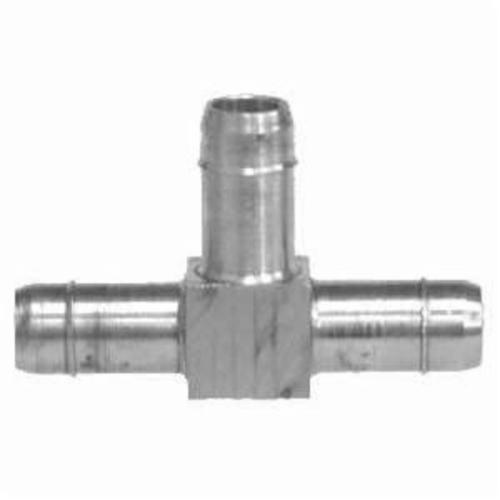

Midland Industries 21159 Single Barb Union Tee, 1/2 x 1/2 x 3/8 in Nominal, Tube End Style, Brass
Invoice description:
Tee Un 1/2x1/2x3/8in Tub E 150psi Brs Midland Industries 21159 Single Barb Union Tee, 1/2 X 1/2 X 3/8 In Nominal, Tube End Style, Brass
Factory Order
Midland Industries Union Tee, Single Barb, Fitting/Connector Type: Tee, 1/2 x 1/2 x 3/8 in Nominal, Tube End Style, 150 psi Pressure, -40 to 160 deg F, Brass
Features
- For use with hose clamp, similar type clamp or a crimped ferrule
- Quick connecting fittings that do not require tube preparations for hand assembly
- Inexpensive with excellent resistance to vibration
- Use with hose clamp, similar type clamp or a crimped ferrule
- 3/8 in x 3/8 in x 1/4 in tube ID
- /- 0.02 on all dimensions
Specifications
ApplicationFor polyethylene tubing
End StyleTube
Fitting/Connector TypeTee
MaterialBrass
Nominal Size1/2 x 1/2 x 3/8 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F
TypeSingle Barb
Additional Information
Country of OriginUS
