Midland Industries MIDM 21207

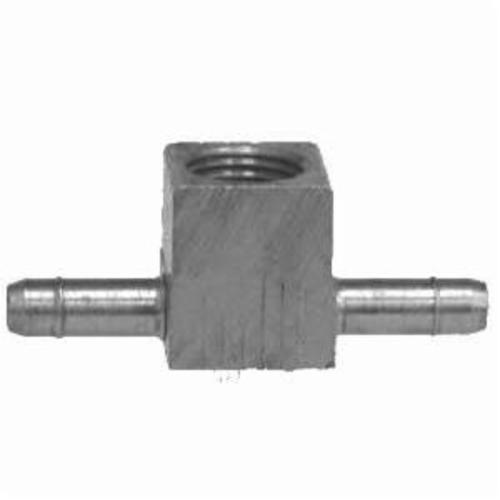

Midland Industries 21207 Single Barb Branch Tee, 1/4 x 1/4 x 1/8 in Nominal, Tube x Tube x Female End Style, Brass
Invoice description:
Tee Br 1/4x1/4x1/8in 150 Psi Brs Midland Industries 21207 Single Barb Branch Tee, 1/4 X 1/4 X 1/8 In Nominal, Tube X Tube X Female End Style, Brass
Factory Order
Midland Industries Branch Tee, Single Barb, Fitting/Connector Type: Tee, 1/4 x 1/4 x 1/8 in Nominal, Tube x Tube x Female End Style, 150 psi Pressure, -40 to 160 deg F, Brass
Features
- For use with hose clamp, similar type clamp or a crimped ferrule
- Quick connecting fittings that do not require tube preparations for hand assembly
- Inexpensive with excellent resistance to vibration
- Use with hose clamp, similar type clamp or a crimped ferrule
- /- 0.02 on all dimensions
Specifications
ApplicationFor polyethylene tubing
End StyleTube x Tube x Female
Fitting/Connector TypeTee
MaterialBrass
Nominal Size1/4 x 1/4 x 1/8 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F
TypeSingle Barb
Additional Information
Country of OriginUS
