Midland Industries MIDM 22015

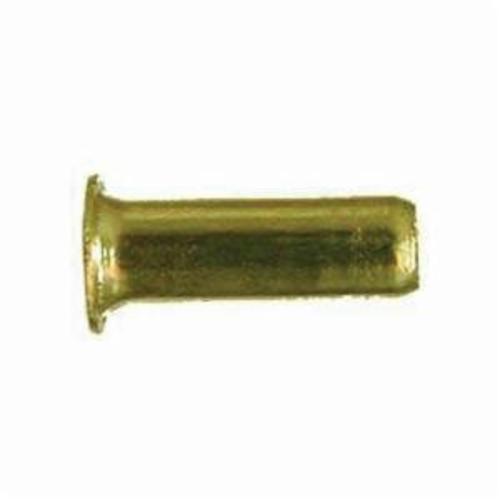

Midland Industries 22015 Sleeve Tube Insert, 3/4 in, Compression, Brass

Invoice description: Insert Tube 3/4in Compre Ssion 100psi Brs Midland Industries 22015 Sleeve Tube Insert, 3/4 In, Compression, Brass

UNSPSC: 40183100
Manufacturer PN: 22015
$4.72 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Tube Insert, Sleeve, Insert, 3/4 in Nominal, Compression, 100 psi, -65 to 250 deg F, Brass, 0.563 in OD x 1.03 in L

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.563 in OD x 1.03 in L
End StyleCompression
Fitting/Connector TypeInsert
MaterialBrass
Nominal Size3/4 in
Pressure Rating100 psi
Temperature Rating-65 to 250 deg F
TypeSleeve

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginCN
