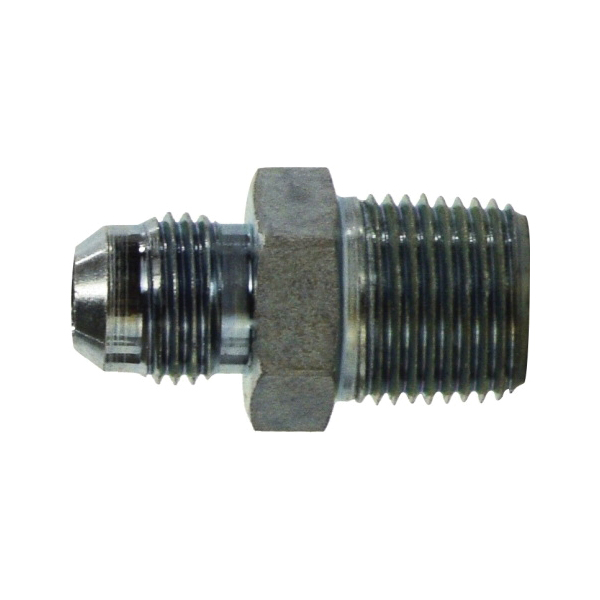

Midland Industries MIDM 240466

Midland Industries 240466 Straight Connector, 3/8 in x 9/16-18 Nominal, 37 deg SAE Male JIC Flare x MNPT, Steel

Invoice description: Connector 9/16-18x3/8in 5000psi Midland Industries 240466 Straight Connector, 3/8 In X 9/16-18 Nominal, 37 Deg Sae Male Jic Flare X Mnpt, Steel

UNSPSC: 27121700
Manufacturer PN: 240466
$2.05 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Connector, Straight, 3/8 in x 9/16-18 Nominal, 37 deg SAE Male JIC Flare x MNPT, 5000 psi, Steel

  • Features

  • Flared fitting or tube assembly is tightened against the cone with a swivel nut
  • By forcing the flare against the cone during the torquing process, the nose cone is slightly deformed and meshes to create a metal to metal seal between the flare and the cone

Specifications

End Style37 deg SAE Male JIC Flare x MNPT
MaterialSteel
Nominal Size3/8 in x 9/16-18
Pressure Rating5000 psi
TypeStraight

Additional Information

Country of OriginUS
