Midland Industries MIDM 27003

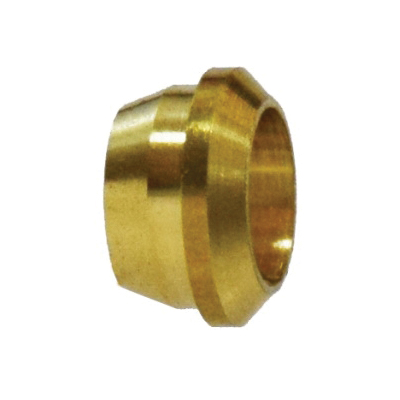

Midland Industries 27003 Self-Align Sleeve, 1/4 in, Compression, Brass, Import
Invoice description:
Sleeve Self-align 1/4in Compression Brs Midland Industries 27003 Self-align Sleeve, 1/4 In, Compression, Brass, Import
Factory Order
Midland Industries Self-Align Sleeve, Sleeve, 1/4 in Nominal, Compression, 300 psi, -65 to 250 deg F, Brass, 0.21 in L x 0.37 in H, Import
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Soft plastic tubing requires support inside
Specifications
ApplicationFor use with copper, brass, aluminum, plastic and soft plastic tubing, water, air and lubrication system applications
Dimensions0.21 in L x 0.37 in H
Domestic/ImportImport
End StyleCompression
Fitting/Connector TypeSleeve
MaterialBrass
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginTW
