Midland Industries MIDM 27005

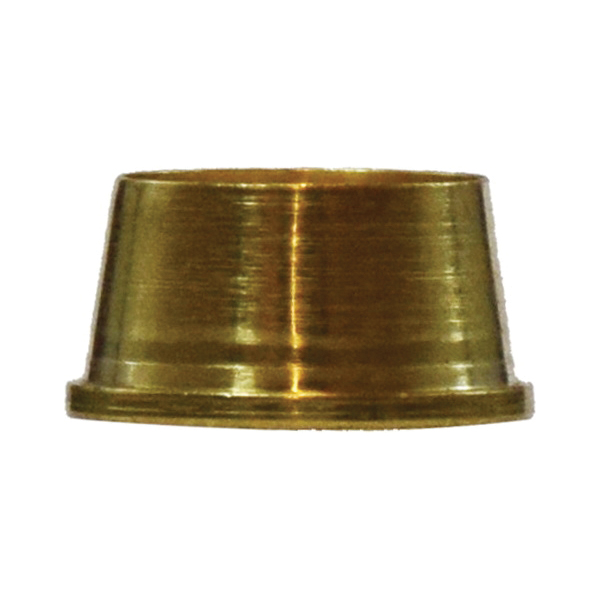

Midland Industries 27005 Self-Align Sleeve, 3/8 in, Compression, Brass
Invoice description:
Sleeve Self-align 3/8in Compression Brs Midland Industries 27005 Self-align Sleeve, 3/8 In, Compression, Brass
Factory Order
Midland Industries Self-Align Sleeve, Sleeve, 3/8 in Nominal, Compression, 200 psi, -65 to 250 deg F, Brass, 0.23 in L x 0.5 in H
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Soft plastic tubing requires support inside
Specifications
ApplicationFor use with copper, brass, aluminum, plastic and soft plastic tubing, water, air and lubrication system applications
Dimensions0.23 in L x 0.5 in H
End StyleCompression
Fitting/Connector TypeSleeve
MaterialBrass
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE
Country of OriginUS
