Midland Industries MIDM 28051

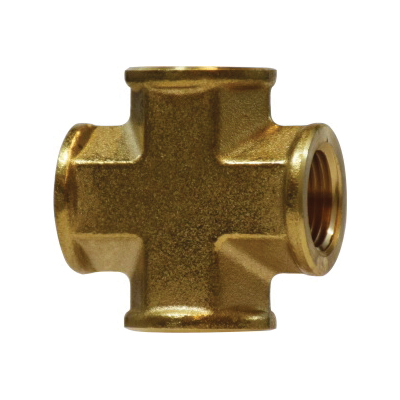

Midland Industries 28051 Pipe Cross, 3/8 in Nominal, FNPT End Style, Brass, Import

Invoice description: Cross Pipe Cross 3/8in F Ip Brs 1200psi Midland Industries 28051 Pipe Cross, 3/8 In Nominal, Fnpt End Style, Brass, Import

UNSPSC: 40183100
Manufacturer PN: 28051
$12.07 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Pipe Cross, Fitting/Connector Type: Cross, 3/8 in Nominal, FNPT, 1200 psi, Forged, Brass, -65 to 250 deg F, 0.81 in W, 0.81 in, Import

  • Features

  • Fair resistance vibration
  • Used with brass, bronze, copper, steel, aluminum and iron pipe
  • /- 0.02 tolerance on all dimensions
  • 3/8-18 thread size

Specifications

ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Dimensions0.81 in W, 0.81 in
Domestic/ImportImport
End StyleFNPT
Fitting/Connector TypeCross
MaterialBrass
Method of ManufactureForged
Nominal Size3/8 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA Certified|ASME Specified|SAE Approved
Country of OriginCN
