Midland Industries MIDM 28062L

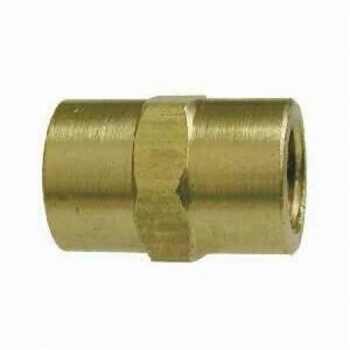

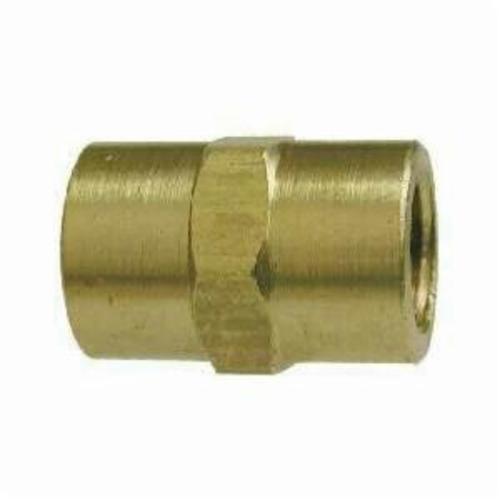

Midland Industries 28062L Light Pattern Pipe Coupling, 3/4 in Nominal, FNPT End Style, Brass, Import
Invoice description:
Coupling Pipe Coupling 3 /4in Fip Brs Midland Industries 28062l Light Pattern Pipe Coupling, 3/4 In Nominal, Fnpt End Style, Brass, Import
Factory Order
Midland Industries Pipe Coupling, Light Pattern, Fitting/Connector Type: Coupling, 3/4 in Nominal, FNPT, 1-1/4 in Hex, 1.19 in Length, 1000 psi, Brass, -65 to 250 deg F, Import
Features
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 3/4-14 thread size
- Fittings are completely interchangeable with full pattern fittings, but have been modified in some way
- Modification is usually in the length of the pipe threads
Specifications
ApplicationFor plumbing and light industrial applications
Domestic/ImportImport
End StyleFNPT
Fitting/Connector TypeCoupling
Hex Size1-1/4 in
Length1.19 in
MaterialBrass
Nominal Size3/4 in
Pressure Rating1000 psi
Temperature Rating-65 to 250 deg F
TypeLight Pattern
Additional Information
Standards/ApprovalASA Certified|ASME Specified|SAE 130138
Country of OriginCN
