Midland Industries MIDM 28263

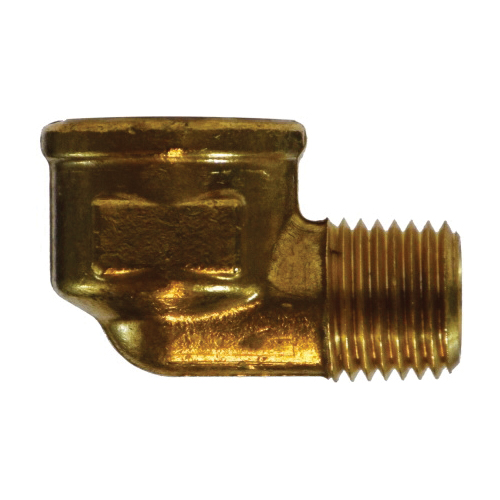

Midland Industries 28263 Reducer Street Elbow, 3/8 x 1/4 in Nominal, MNPT x FNPT End Style, Brass
Invoice description:
Elbow St Rdcr 90 Deg Elb 3/8 X 1/4in Brs Midland Industries 28263 Reducer Street Elbow, 3/8 X 1/4 In Nominal, Mnpt X Fnpt End Style, Brass
Factory Order
Midland Industries Reducer Street Elbow, 90 deg Elbow Fitting/Connector, 3/8 x 1/4 in Nominal, MNPT x FNPT End Style, 1200 psi Pressure, Forged Method of Manufacture, Brass, -65 to 250 deg F, 0.58 x 0.94 in Dimensions
Features
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 3/8-18 x 1/4-18 thread size
- 0.81 in wrench flat
Specifications
ApplicationFor grease, fuels, LP and natural Gas (available on special order), refrigeration, instrumentation and hydraulic systems
Dimensions0.58 x 0.94 in
End StyleMNPT x FNPT
Fitting/Connector Type90 deg Elbow
MaterialBrass
Method of ManufactureForged
Nominal Size3/8 x 1/4 in
Pressure Rating1200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA Certified|ASME Specified|SAE Approved
Country of OriginUS
