Midland Industries MIDM 32034

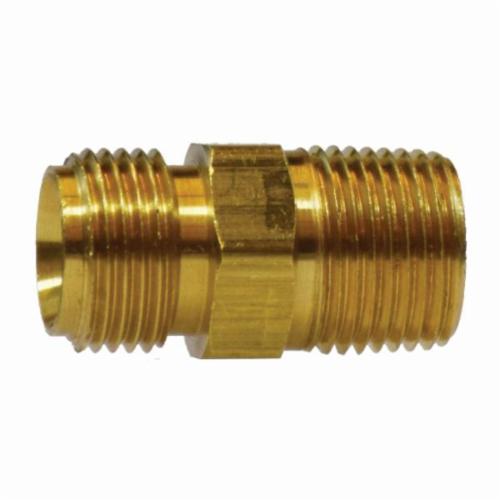

Midland Industries 32034 Ball Seat Adapter, 1/4 x 1/8 in Nominal, MNPSM x MIP End Style, Brass

Invoice description: Adapter Ballseat 1/4x1/8 In Mnpsmxmip Midland Industries 32034 Ball Seat Adapter, 1/4 X 1/8 In Nominal, Mnpsm X Mip End Style, Brass

UNSPSC: 40183101
Manufacturer PN: 32034
$3.92 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Ball Seat Adapter, Fitting/Connector Type: Adapter, 1/4 x 1/8 in Nominal, MNPSM x MIP End Style, 0.56 in Hex, 150 psi Pressure, -40 to 160 deg F, Brass, 1.06 in L

  • Features

  • +/- 0.02 tolerance on all dimensions
  • For use with hose clamp, similar type clamp or a crimped ferrule
  • Beveled seat type
  • 30 deg seat

Specifications

Dimensions1.06 in L
End StyleMNPSM x MIP
Fitting/Connector TypeAdapter
Hex Size0.56 in
MaterialBrass
Nominal Size1/4 x 1/8 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F

Additional Information

Country of OriginUS
