Midland Industries MIDM 32115

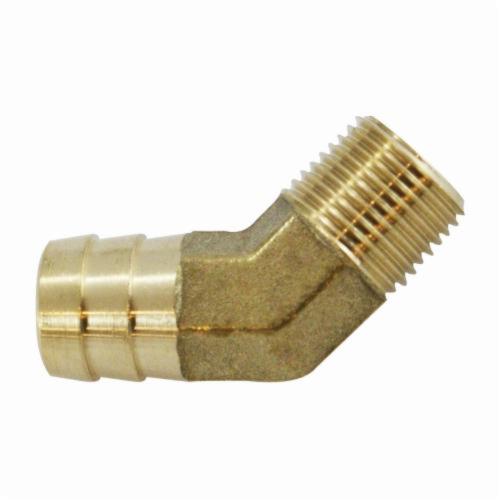

Midland Industries 32115 Elbow, 5/8 x 3/8 in Nominal, Hose Barb x MIP End Style, Brass, Import

Invoice description: Elbow 5/8x3/8in Hose Bar Bxmip 150psi Midland Industries 32115 Elbow, 5/8 X 3/8 In Nominal, Hose Barb X Mip End Style, Brass, Import

UNSPSC: 40183101
Manufacturer PN: 32115
$14.68 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Elbow, Fitting/Connector Type: 45 deg Elbow, 5/8 x 3/8 in Nominal, Hose Barb x MIP End Style, 150 psi Pressure, -40 to 160 deg F, Brass, 0.97 x 0.88 in, Import

  • Features

  • +/- 0.02 tolerance on all dimensions
  • For use with hose clamp, similar type clamp or a crimped ferrule
  • 0.59 in body size
  • Flat Barb

Specifications

Dimensions0.97 x 0.88 in
Domestic/ImportImport
End StyleHose Barb x MIP
Fitting/Connector Type45 deg Elbow
MaterialBrass
Nominal Size5/8 x 3/8 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F

Additional Information

Country of OriginCN
