Midland Industries MIDM 32151

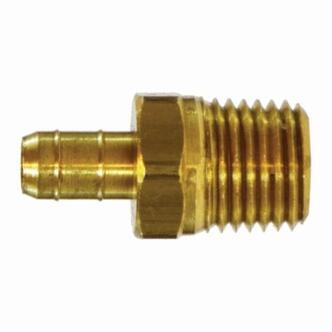

Midland Industries 32151 Pipe Adapter, 1/4 in Nominal, Double Hose Barb x MIP End Style, Brass
Invoice description:
Adapter Pipe 1/4in Dbl H Ose Barbxmip Midland Industries 32151 Pipe Adapter, 1/4 In Nominal, Double Hose Barb X Mip End Style, Brass
Factory Order
Midland Industries Pipe Adapter, Fitting/Connector Type: Adapter, 1/4 in Nominal, Double Hose Barb x MIP End Style, 150 psi Pressure, -40 to 160 deg F, Brass
Features
- +/- 0.02 tolerance on all dimensions
- For use with hose clamp, similar type clamp or a crimped ferrule
- Quick connecting fittings that do not require tube preparations for hand assembly
- Inexpensive with excellent resistance to vibration
- 1+/8 in ID
Specifications
ApplicationFor Polyethylene Tubing
End StyleDouble Hose Barb x MIP
Fitting/Connector TypeAdapter
MaterialBrass
Nominal Size1/4 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F
Additional Information
Country of OriginUS
