Midland Industries MIDM 32202

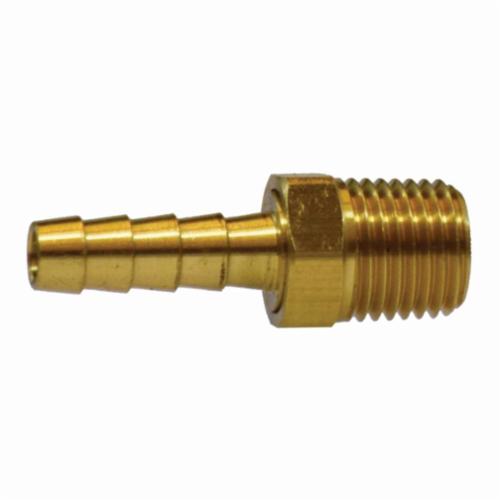

Midland Industries 32202 Swivel Adapter, 3/8 in Nominal, Hose Barb x MIP End Style, Brass, Import

Invoice description: Adapter Swvl 3/8in Hose Barbxmip Brs Midland Industries 32202 Swivel Adapter, 3/8 In Nominal, Hose Barb X Mip End Style, Brass, Import

UNSPSC: 40183101
Manufacturer PN: 32202
$5.78 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Swivel Adapter, Fitting/Connector Type: Adapter, 3/8 in Nominal, Hose Barb x MIP End Style, 0.68 in Hex, 150 psi Pressure, -40 to 160 deg F, Brass, 1-3/4 in L, Import

  • Features

  • +/- 0.02 tolerance on all dimensions
  • For use with hose clamp, similar type clamp or a crimped ferrule

Specifications

Dimensions1-3/4 in L
Domestic/ImportImport
End StyleHose Barb x MIP
Fitting/Connector TypeAdapter
Hex Size0.68 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F

Additional Information

Country of OriginTW
