Midland Industries MIDM 32354

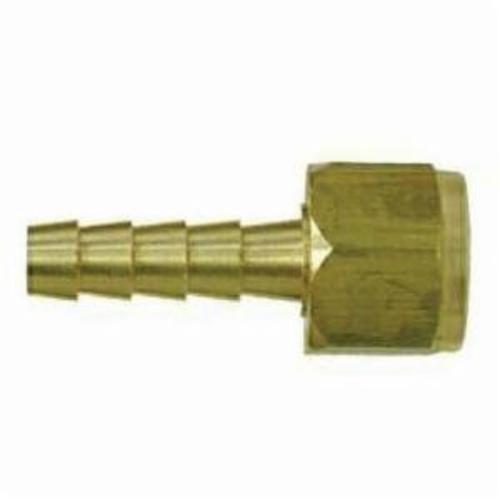

Midland Industries 32354 Swivel Adapter With Gasket, 3/8 x 1/2 in Nominal, Hose Barb x FNPSM End Style, Brass

Invoice description: Adapter Swvl 3/8x1/2in 0 .93in 150psi Midland Industries 32354 Swivel Adapter With Gasket, 3/8 X 1/2 In Nominal, Hose Barb X Fnpsm End Style, Brass

UNSPSC: 40183101
Manufacturer PN: 32354
$11.55 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Swivel Adapter, Fitting/Connector Type: Adapter, 3/8 x 1/2 in Nominal, Hose Barb x FNPSM End Style, 0.93 in Hex, 150 psi Pressure, -40 to 160 deg F, Brass, 1.66 in L

  • Features

  • +/- 0.02 tolerance on all dimensions
  • For use with hose clamp, similar type clamp or a crimped ferrule

Specifications

ApplicationFor use with hose clamp, similar type clamp or a crimped ferrule
Dimensions1.66 in L
End StyleHose Barb x FNPSM
Fitting/Connector TypeAdapter
Hex Size0.93 in
MaterialBrass
Nominal Size3/8 x 1/2 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F

Additional Information

Country of OriginUS
