Midland Industries MIDM 32727

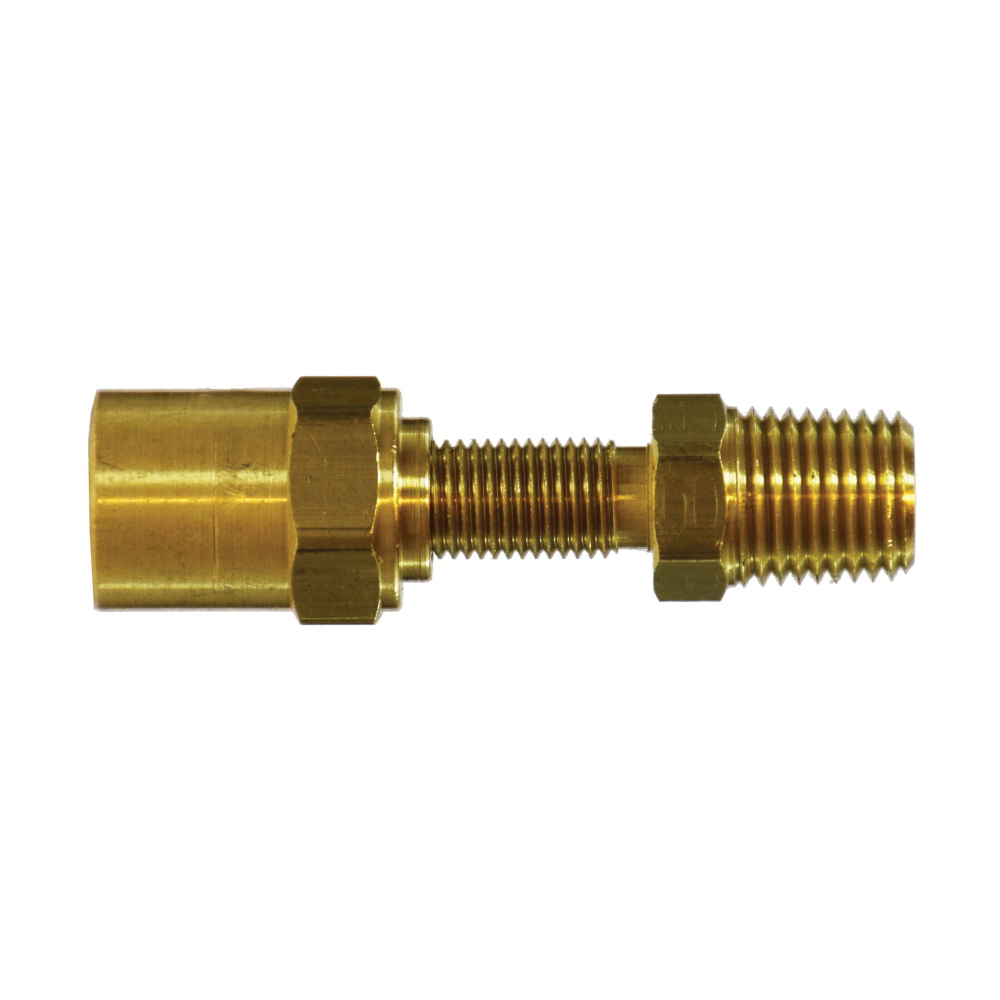

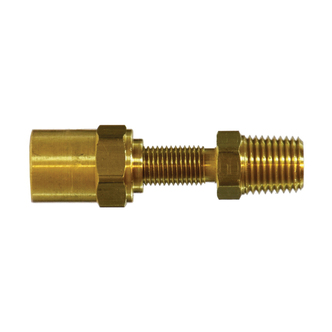

Midland Industries 32727 Reusable Hose Coupling, 1/4 x 1/4 x 1/2 in Nominal, Male x Hose Barb x Hose Barb End Style, Brass
Invoice description:
Coupling Hose 1/4x1/4x1/ 2in 150psi Midland Industries 32727 Reusable Hose Coupling, 1/4 X 1/4 X 1/2 In Nominal, Male X Hose Barb X Hose Barb End Style, Brass
Factory Order
Midland Industries Hose Coupling, Reusable, Fitting/Connector Type: Adapter, 1/4 x 1/4 x 1/2 in Nominal, Male x Hose Barb x Hose Barb End Style, 0.69 in, 0.56 in Hex, 150 psi Pressure, -40 to 160 deg F, Brass, 1.86 in L
Features
- +/- 0.02 tolerance on all dimensions
- For use with hose clamp, similar type clamp or a crimped ferrule
Specifications
Dimensions1.86 in L
End StyleMale x Hose Barb x Hose Barb
Fitting/Connector TypeAdapter
Hex Size0.69 in, 0.56 in
MaterialBrass
Nominal Size1/4 x 1/4 x 1/2 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F
TypeReusable
Additional Information
Country of OriginCN
