Midland Industries MIDM 40201

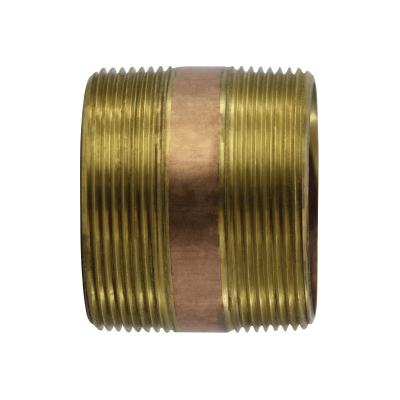

Midland Industries 40201 Standard Pipe Nipple, 3 in Nominal, 3 in L, Brass, NPT End Style
Invoice description:
Nipple Pipe Nip 3in Npt R 0.219in 3in Midland Industries 40201 Standard Pipe Nipple, 3 In Nominal, 3 In L, Brass, Npt End Style
Factory Order
Midland Industries Pipe Nipple, Lead Free Standard, 3 in Nominal, NPT, 3 in Length, 510 psi at 100 deg F/510 psi at 200 deg F/450 psi at 300 deg F/190 psi at 400 deg F, 100 to 400 deg F, Seamless, Brass, Red, 3.062 in ID x 3.50 in OD x 0.219 in THK
Features
- Meets legislation for potable water application
- Lead free - no lead 125LB seamless threaded red brass nipples - 2200
- The chemical analysis is 85% copper and 15% zinc
Specifications
ColorRed
Dimensions3.062 in ID x 3.50 in OD x 0.219 in THK
End StyleNPT
Length3 in
MaterialBrass
Method of ManufactureSeamless
Nominal Size3 in
Pressure Rating510 psi at 100 deg F/510 psi at 200 deg F/450 psi at 300 deg F/190 psi at 400 deg F
Temperature Rating100 to 400 deg F
TypeStandard
Additional Information
Standards/ApprovalANSI B1.20.1|ANSI B687-96|NSF-61 Approved|MS51846|RoHS Compliant|Federal Specifications WWN-351|Federal Government 5.3874|Federal Public Law 111-380|California AB 1953|Maryland HB-372|Louisiana Act No. 362|Vermont Statute|Title 9 Chapter 63: 247h|ASTM B43/ASTM B687-96|PROP65: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Country of OriginCN
