Midland Industries MIDM 44134

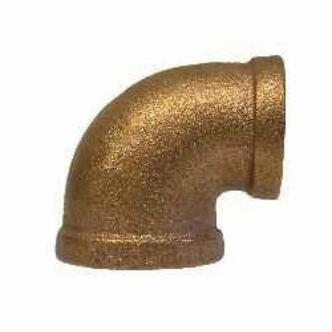

Midland Industries 44134 90 deg Reducing Elbow, 1-1/4 x 1 in Nominal, Threaded End Style, Bronze, Import
Invoice description:
Elbow Reducing 1-1/4x1in Thd Midland Industries 44134 90 Deg Reducing Elbow, 1-1/4 X 1 In Nominal, Thread End Style, Bronze, Import
Factory Order
Midland Industries Reducing Elbow, Fitting/Connector Type: 90 deg Elbow, 1-1/4 x 1 in Nominal, Threaded, Smooth Cored Casting, Bronze, 1.52 x 1.6 in, Import
Features
- Bronze threaded fittings are manufactured from smooth-cored castings
- Designed to provide full flow with minimum restriction
- All threads are accurately machined and gauged to ensure a perfect fit with the pipe
- All fittings are individually tested under water to ensure quality
- Bronze provides a tighter seal and is easier to install then other metals
- Able to resist the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils
- Class 125 (150) for steam, water, Gas, oil and air service
Specifications
ApplicationWater, Plumbing, Heating, Pneumatic and Marine Applications
Dimensions1.52 x 1.6 in
Domestic/ImportImport
End StyleThreaded
Fitting/Connector Type90 deg Elbow
MaterialBronze
Method of ManufactureSmooth Cored Casting
Nominal Size1-1/4 x 1 in
Additional Information
Standards/ApprovalANSI B 16.15|ANSI B2.1 or BA 21|ANSI/ASME B1.20.1|UL842|UL258|UL125|Federal WW-P-460C|MSS-SP-106|FM Approved|RoHS Compliant
Country of OriginCN
