Midland Industries MIDM 44515

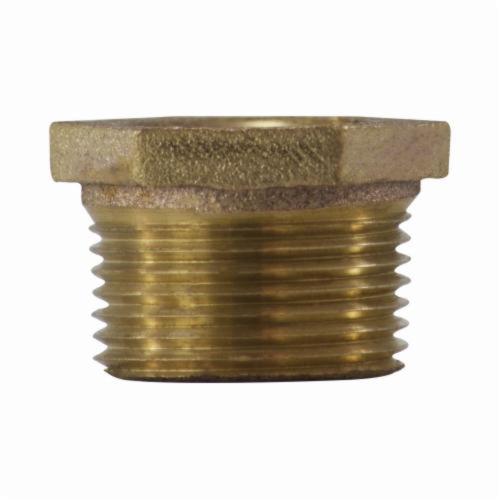

Midland Industries 44515 Hex Bushing, 1-1/4 x 3/8 in Nominal, MNPT x FNPT End Style, Bronze, Domestic
Invoice description:
Bushing Hex Bshg 1-1/4 X 3/8in Brz Dom Midland Industries 44515 Hex Bushing, 1-1/4 X 3/8 In Nominal, Mnpt X Fnpt End Style, Bronze, Domestic
Factory Order
Midland Industries Hex Bushing, Bushing Fitting/Connector, 1-1/4 x 3/8 in Nominal, MNPT x FNPT End Style, 1.84 in Hex, Smooth Cored Casting Method of Manufacture, Bronze, 1.19 in L Dimensions, Domestic/Import: Domestic
Features
- Bronze threaded fittings are manufactured from smooth-cored castings
- Designed to provide full flow with minimum restriction
- All threads are accurately machined and gauged to ensure a perfect fit with the pipe
- All fittings are individually tested under water to ensure quality
- Bronze provides a tighter seal and is easier to install then other metals
- Able to resist the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils
- Class 125 (150) for steam, water, Gas, oil and air service
Specifications
ApplicationWater, Plumbing, Heating, Pneumatic and Marine Applications
Dimensions1.19 in L
Domestic/ImportDomestic
End StyleMNPT x FNPT
Fitting/Connector TypeBushing
Hex Size1.84 in
MaterialBronze
Method of ManufactureSmooth Cored Casting
Nominal Size1-1/4 x 3/8 in
Additional Information
Standards/ApprovalANSI B 16.15|ANSI B2.1 or BA 21|ANSI/ASME B1.20.1|UL842|UL258|UL125|Federal WW-P-460C|MSS-SP-106|FM Approved|RoHS Compliant
Country of OriginUS
