MMM MIDM 46514

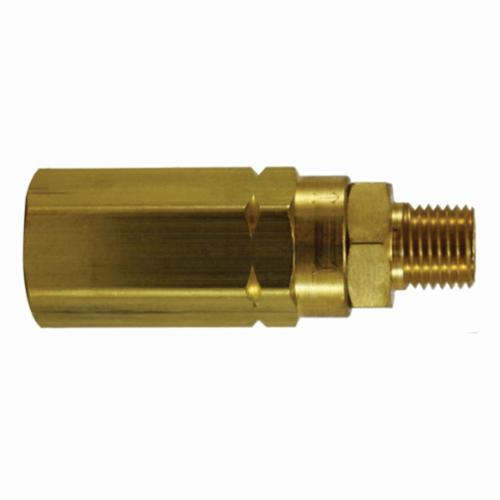

MMM 46514 High Pressure Check Valve, 1/4 in Nominal, FIP x MIP End Style, 4 gpm at 10 psi Water Flow Rate, Brass Body

Invoice description: Valve Check 1/4in Fipxmi P Brs 3000psi Mmm 46514 High Pressure Check Valve, 1/4 In Nominal, Fip X Mip End Style, 4 Gpm At 10 Psi Water Flow Rate, Brass Body

UNSPSC: 40173500
Manufacturer PN: 46514
$58.48 EA
Factory Order
Estimated to ship in 7 days
QTY:


MMM Check Valve, High Pressure, 1/4 in Nominal Size, FIP x MIP, 3000 psi, 180 deg F, 4 gpm at 10 psi Water, Media: Air/Water, Brass Body, Buna-N Seal

  • Features

  • Operates in any position
  • Fixed ringed seat prevents extrusion of seal
  • Approximate 1.2 Cv
  • 0.28 in opening diameter
  • 316 stainless steel ball and spring
  • Cracking Pressure: 1 psi

Specifications

Body MaterialBrass
End StyleFIP x MIP
Flow Rate4 gpm at 10 psi Water
MediaAir/Water
Nominal Size1/4 in
Pressure Rating3000 psi
Softgoods MaterialBuna-N Seal
Temperature Rating180 deg F
TypeHigh Pressure

Additional Information

Country of OriginUS
