Midland Industries MIDM 56225

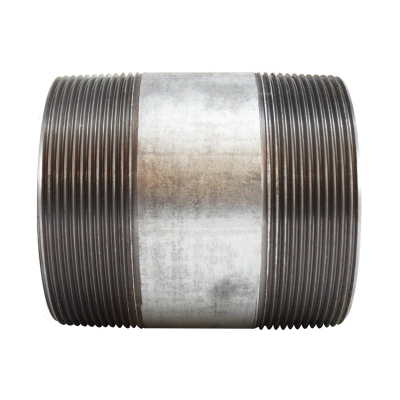

Midland Industries 56225 Standard Pipe Nipple, Steel, 4 x 5 in Nominal, SCH 40/STD, NPT End Style, Galvanized, Import

Invoice description: Nipple Pipe 4x5in Npt 0. 237in Sch Midland Industries 56225 Standard Pipe Nipple, Steel, 4 X 5 In Nominal, Sch 40/std, Npt End Style, Galvanized, Import

UNSPSC: 40173500

Manufacturer PN: 56225

^$39.27 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Pipe Nipple, Standard, Fitting/Connector Type: Nipple, 4 x 5 in Nominal, NPT End Style, SCH 40/STD Schedule, 0.237 in Thickness, Seamless/Welded Method of Manufacture, Steel, Galvanized, -200 to 150 deg F, Import

Features
All pipe is hydrostatic tested
Steel and wrought iron welded
Zinc coating applied by hot dipped
4.026 in ID x 4.5 in OD
All pipe is roller cut, a visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut
33.7 kg/sq-mm at 48000 psi, 20 kg/sq-mm at 28500 psi tensile strength
Pipe lengths are cut to a tolerance of or - 1/16 in of the actual length
All pipe is chaser thread cut to American standard tapered pipe thread standards
3/4 in taper per foot
Pipe is visually inspected for roundness of threads and other visual faults as it is removed from the threading machine
