Midland Industries MIDM 57300

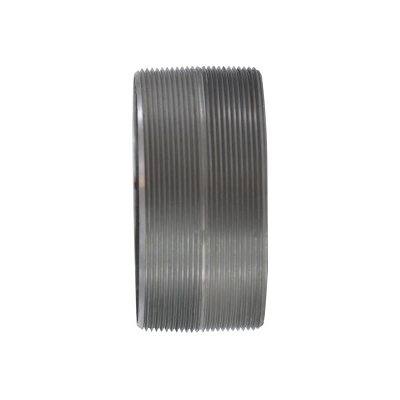

Midland Industries 57300 Standard Pipe Nipple, 6 in Nominal, NPT End Style, 3-1/8 in L, Steel, Black, SCH 40/STD, Seamless/Welded, Import
Invoice description:
Nipple Pipe 6in Npt 3-1/ 8in Stl Bk Midland Industries 57300 Standard Pipe Nipple, 6 In Nominal, Npt End Style, 3-1/8 In L, Steel, Black, Sch 40/std, Seamless/welded, Import
Factory Order
Midland Industries Pipe Nipple, Standard, 6 in Nominal Size, NPT, 3-1/8 in Length, SCH 40/STD, -200 to 150 deg F, Seamless/Welded, Steel, Black, Import
Features
- 0.28 in Wall Thickness
- All pipe is hydrostatic tested
- Steel and wrought iron welded
- Protected against oxidation with varnish coating
- 6.065 in ID x 6.625 in OD
- All pipe is roller cut, a visual inspection of seams, excessive galvanizing, mid-welds, poor galvanizing, bends, roundness, under and over weight of the pipe is made at the time it is cut
- 33.7 kg/sq-mm at 48000 psi, 20 kg/sq-mm at 28500 psi tensile strength
- Pipe lengths are cut to a tolerance of + or - 1/16 in of the actual length
- All pipe is chaser thread cut to American standard tapered pipe thread standards
- This is 3/4 in taper per foot
Specifications
Domestic/ImportImport
End StyleNPT
FinishBlack
Length3-1/8 in
MaterialSteel
Method of ManufactureSeamless/Welded
Nominal Size6 in
Schedule RatingSCH 40/STD
Temperature Rating-200 to 150 deg F
TypeStandard
Additional Information
Standards/ApprovalANSI B1.20.1|ANSI B36.1
Country of OriginCN
