Midland Industries MIDM 6806NWO44

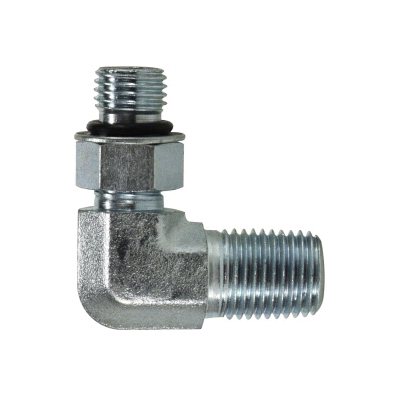

Midland Industries 6806NWO44 Hydraulic Elbow, 7/16-20 x 1/4 in Nominal, Male O-Ring Boss x MNPT, Steel
Invoice description:
Elbow Hc 7/16-20x1/4in M Ale Orbxmnpt Midland Industries 6806nwo44 Hydraulic Elbow, 7/16-20 X 1/4 In Nominal, Male O-ring Boss X Mnpt, Steel
Factory Order
Midland Industries Hydraulic Elbow, 7/16-20 x 1/4 in Nominal, Male O-Ring Boss x MNPT, 90 deg, 4500 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
- Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
Specifications
Angle90 deg
End StyleMale O-Ring Boss x MNPT
MaterialSteel
Nominal Size7/16-20 x 1/4 in
Pressure Rating4500 psi
Additional Information
Country of OriginUS
