Midland Industries MIDM 6809NWO1212

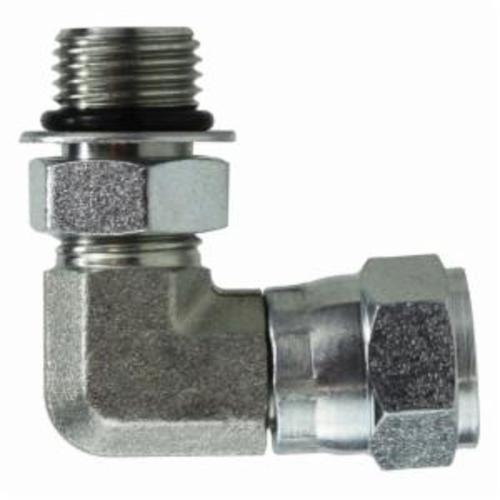

Midland Industries 6809NWO1212 Swivel Nut Elbow, 1-1/16-12 Nominal, Male O-Ring Boss x Female 37 deg JIC Flare, Steel
Invoice description:
Elbow Nut Swvl 1-1/16-12 90deg 2900psi Midland Industries 6809nwo1212 Swivel Nut Elbow, 1-1/16-12 Nominal, Male O-ring Boss X Female 37 Deg Jic Flare, Steel
Factory Order
Midland Industries Swivel Nut Elbow, 1-1/16-12 Nominal, Male O-Ring Boss x Female 37 deg JIC Flare, 90 deg, 2900 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
- Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
Specifications
Angle90 deg
End StyleMale O-Ring Boss x Female 37 deg JIC Flare
MaterialSteel
Nominal Size1-1/16-12
Pressure Rating2900 psi
Additional Information
Country of OriginUS
