Midland Industries MIDM 6815NWO1212

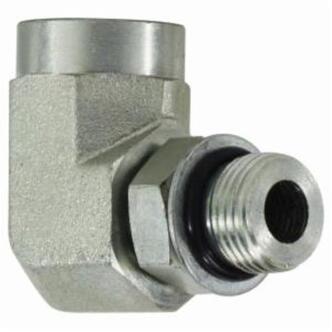

Midland Industries Hydraulic Elbow, 1-1/16-12 Nominal, Female ORB x Male ORB, 90 deg, 2900 psi, Steel

• Features

• O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
• When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
• Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
• Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port

Specifications

Additional Information

Documents

• Catalog
