MMM MIDM 6815NWO66

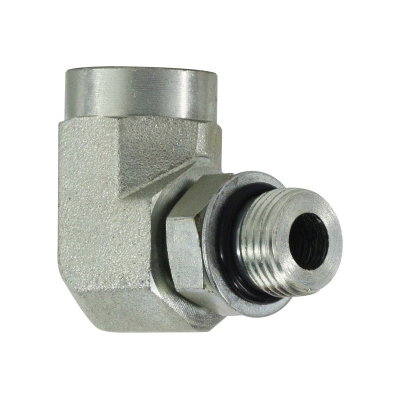

MMM 6815NWO66 Hydraulic Elbow, 9/16-18 Nominal, Female ORB x Male ORB, Steel

Invoice description: Elbow Hc 9/16-18 Fem Orb Xmale Orb Stl Mmm 6815nwo66 Hydraulic Elbow, 9/16-18 Nominal, Female Orb X Male Orb, Steel

UNSPSC: 27121705

Manufacturer PN: 6815NWO66

^$10.09 EA

Factory Order
Estimated to ship in 7 days

MMM Hydraulic Elbow, 9/16-18 Nominal, Female ORB x Male ORB, 90 deg, 3600 psi, Steel

Features
O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
