Midland Industries MIDM 6900O108

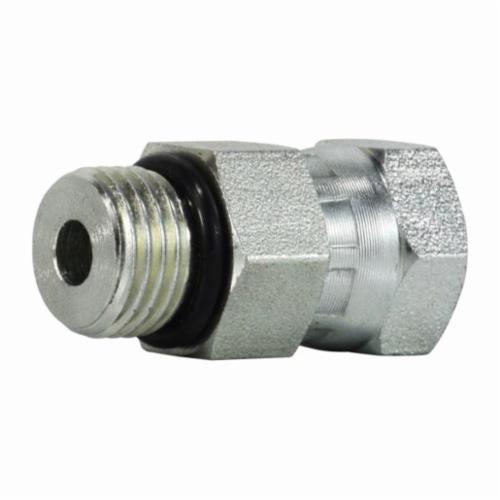

Midland Industries 6900O108 Swivel Adapter, 7/8-14 x 1/2 in Nominal, Male O-Ring Boss x Female NPSM, Steel
Invoice description:
Adapter Swvl 7/8-14x1/2i N Stl Midland Industries 6900o108 Swivel Adapter, 7/8-14 X 1/2 In Nominal, Male O-ring Boss X Female Npsm, Steel
Factory Order
Midland Industries Swivel Adapter, 7/8-14 x 1/2 in Nominal, Male O-Ring Boss x Female NPSM, 2900 to 3600 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
Specifications
End StyleMale O-Ring Boss x Female NPSM
MaterialSteel
Nominal Size7/8-14 x 1/2 in
Pressure Rating2900 to 3600 psi
Additional Information
Standards/ApprovalSAE 140157
Country of OriginUS
